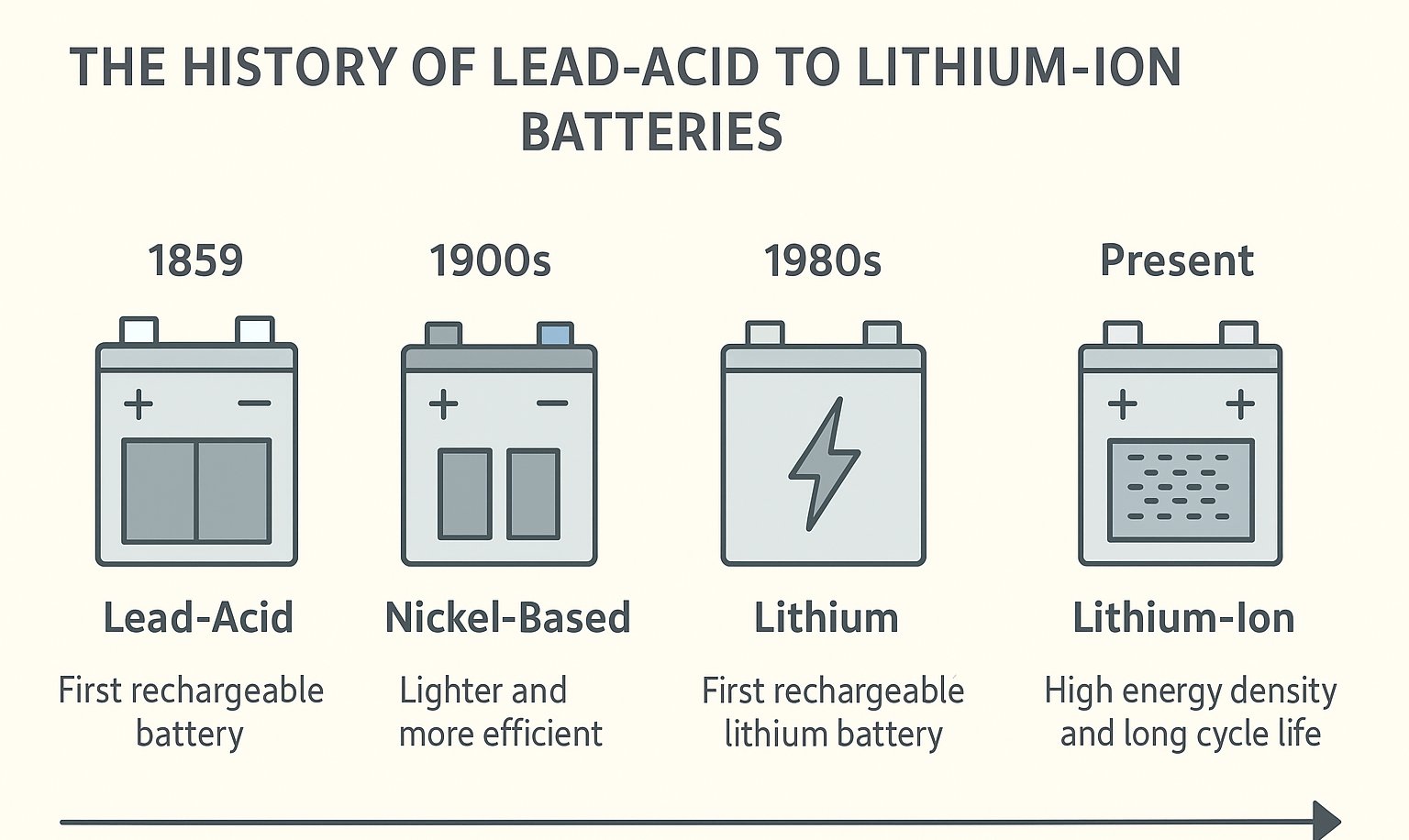

The History of Lead-Acid to Lithium-Ion Batteries: A Journey of Power Innovation

Energy storage is one of the most critical technologies shaping human progress. From powering telegraphs in the 19th century to driving electric cars and smartphones in the 21st, batteries have evolved into the backbone of modern civilization. Among the many chemistries developed over time, lead-acid and lithium-ion stand out as defining milestones in the history of batteries. The story of how we moved from Gaston Planté’s lead-acid cell to today’s high-performance lithium-ion systems reveals not only the evolution of science but also the technological leaps that power our everyday lives.

1. The Birth of Rechargeable Batteries: Lead-Acid (1859)

In 1859, French physicist Gaston Planté introduced the lead-acid battery, the world’s first rechargeable battery. It was based on two lead electrodes submerged in sulfuric acid, where chemical reactions produced electricity and could be reversed by applying a charging current.

This invention was groundbreaking for several reasons:

• Rechargeability: Unlike primary (single-use) batteries, the lead-acid could be recharged multiple times.

• High Power Output: It could deliver large currents, making it ideal for applications requiring bursts of power.

• Durability: Despite being heavy and bulky, lead-acid cells were rugged and reliable.

By the late 19th and early 20th centuries, lead-acid batteries powered early electric cars, railway lighting, telegraphs, and backup power systems. With modifications like Camille Faure’s pasted plate design (1881), the technology became more efficient and easier to mass-produce.

Even today, more than 160 years later, lead-acid batteries remain in use—especially in automobiles for starting, lighting, and ignition (SLI) and as backup storage for telecom towers and UPS systems. Their low cost and recyclability have kept them relevant, though their energy density (30–50 Wh/kg) limits advanced applications.

2. Expanding Horizons: Nickel-Based Batteries

While lead-acid dominated the 19th century, the quest for lighter and more efficient chemistries began.

• Nickel–iron battery (NiFe): Invented by Waldemar Jungner and later popularized by Thomas Edison in 1901, this system used iron and nickel electrodes in alkaline electrolyte. It was durable and resistant to overcharging but had low efficiency and was gradually replaced.

• Nickel–cadmium battery (NiCd): Also introduced by Jungner in 1899, NiCd became commercially significant in the mid-20th century. It was widely used in portable electronics, power tools, and aviation. However, cadmium’s toxicity and “memory effect” limited its long-term appeal.

• Nickel–metal hydride (NiMH): Commercialized in the 1980s, NiMH offered higher energy density and lower toxicity compared to NiCd. NiMH batteries powered early hybrid cars like the Toyota Prius and many consumer electronics in the 1990s.

These nickel-based chemistries marked an important step forward but still could not match the energy needs of the rapidly growing digital world.

3. The Lithium Dream: Early Attempts

Lithium, the lightest metal, with high electrochemical potential, was an attractive candidate for high-energy batteries. The first non-rechargeable lithium batteries appeared in the 1970s, used in devices like cameras, pacemakers, and calculators. They were small, long-lasting, and lightweight.

However, researchers wanted to make rechargeable lithium batteries. Early designs using metallic lithium as an anode faced severe safety issues—dendrites would grow during charging, piercing the separator and causing short circuits or even explosions. These safety challenges delayed commercialization.

4. The Breakthrough: Lithium-Ion (1980s–1990s)

The path to safe lithium-ion batteries involved three critical innovations:

1. Cathode Development: In 1980, John B. Goodenough developed lithium cobalt oxide (LiCoO₂), a stable and high-voltage cathode material.

2. Anode Advancement: In 1985, Akira Yoshino used carbon-based materials (like petroleum coke and later graphite) as the anode instead of metallic lithium, eliminating dendrite growth.

3. Electrolyte Optimization: Safer liquid electrolytes enabled lithium ions to shuttle between cathode and anode without catastrophic failure.

In 1991, Sony commercialized the first lithium-ion battery, bringing it into laptops, camcorders, and later, mobile phones. By the mid-1990s, lithium-ion had revolutionized portable electronics.

5. Comparing Lead-Acid and Lithium-Ion

This comparison explains why lithium-ion has become the dominant technology for modern high-performance needs, while lead-acid remains popular for cost-sensitive and backup applications.

6. Lithium-Ion and the Energy Revolution

Lithium-ion’s impact extends far beyond consumer electronics:

• Electric Vehicles (EVs): Tesla, Nissan, and other automakers have pushed lithium-ion to new heights, enabling EV ranges of over 400–600 km on a single charge.

• Renewable Energy Storage: Grid-scale lithium-ion systems balance fluctuating wind and solar power, ensuring reliable electricity supply.

• Aerospace and Defense: Lithium-ion batteries power satellites, drones, and submarines.

• Healthcare: From portable ventilators to medical implants, lithium-ion has made life-saving technology mobile and reliable.

The rapid decline in cost—from $1,200 per kWh in 2010 to under $150/kWh today—has accelerated adoption worldwide.

7. Challenges and Future Directions

Despite their success, lithium-ion batteries face challenges:

• Raw Material Dependency: Lithium, cobalt, and nickel supply chains are limited and geopolitically sensitive.

• Recycling: End-of-life batteries pose environmental challenges, though recycling technologies are advancing.

• Safety: While safer than early designs, thermal runaway remains a risk.

This has spurred research into next-generation technologies, including:

• Solid-state batteries (safer, denser, faster-charging).

• Sodium-ion batteries (lower cost, abundant materials).

• Lithium-sulfur and metal-air systems (potentially far higher energy density).

8.A Journey Still Unfolding

From the lead-acid battery of 1859 to the lithium-ion revolution of today, the evolution of rechargeable batteries mirrors humanity’s technological progress. Lead-acid provided the first practical storage for electricity, driving industrial growth and transportation. Nickel-based chemistries bridged the gap for portable devices. And lithium-ion transformed mobility, computing, and renewable energy integration.

As we look to the future, energy storage remains the backbone of modern society. With cleaner energy goals, electrification of transport, and the rise of smart grids, the demand for advanced batteries will only grow. The journey from lead-acid to lithium-ion was just the beginning—the next chapter may well redefine how humanity stores and uses energy for centuries to come.
